Camel Components

Transform

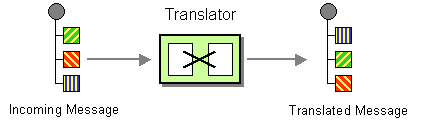

Camel supports the Message Translator from the EIP patterns.

How can systems using different data formats communicate with each other using messaging?


Use a special filter, a Message Translator, between other filters or applications to translate one data format into another.

The Message Translator can be done in different ways in Camel:

  • Using Transform or Set Body in the DSL

  • Calling a Processor or bean to perform the transformation

  • Using template-based Components, with the template being the source for how the message is translated

  • Messages can also be transformed using Data Format to marshal and unmarshal messages in different encodings.

  • Using data type based transformation using Transform DataType

This page is documenting the first approach by using Transform EIP.

Options

The Transform eip supports the following options which are listed below.

Name Description Default Type

note

The note for this node.

String

description

The description for this node.

String

disabled

Whether to disable this EIP from the route during build time. Once an EIP has been disabled then it cannot be enabled later at runtime.

false

Boolean

expression

Required The expression whose result replaces the message body.

ExpressionDefinition

Message Body

The message body at each side of the Transform EIP: EIP input is the body it needs, EIP output the body after it, and Steps the body its own steps start with.

Side Body Description

EIP input

what its expression reads

EIP output

the result of its expression

The result of the expression, in the language of the expression.

The bodies are the ones with the default options. A side that is not listed is not known, and tooling does not guess it. The carriers are described in the Camel Catalog.

Exchange properties

The Transform eip has no exchange properties.

Using Transform EIP

You can use a Transform which uses an Expression to do the transformation:

In the example below, we prepend Hello to the message body using the Simple language:

  • Java

  • XML

  • YAML

from("direct:cheese")
    .transform(simple("Hello ${body}"))
    .to("log:hello");
<route>
    <from uri="direct:cheese"/>
    <transform>
        <simple>Hello ${body}</simple>
    </transform>
    <to uri="log:hello"/>
</route>
- route:
    from:
      uri: direct:cheese
      steps:
        - transform:
            expression:
              simple:
                expression: "Hello ${body}"
        - to:
            uri: log:hello

What is the difference between Transform and Set Body?

The Transform EIP always sets the result on the OUT message body.

Set Body sets the result accordingly to the Exchange Pattern on the Exchange.
